N-280D battery-driven refrigeration unit, 8-12m³

Drive Type: Battery Driven Electric Van Refrigeration Unit
Installation Type: Split Roof Top Mounted
Compressor: Electric rotor compressor
Application: 8~12m³
Refrigerant: R404a
  • Description
  • Parameters
  • Products Description

    Battery Driven Tight Van Refrigeration Units

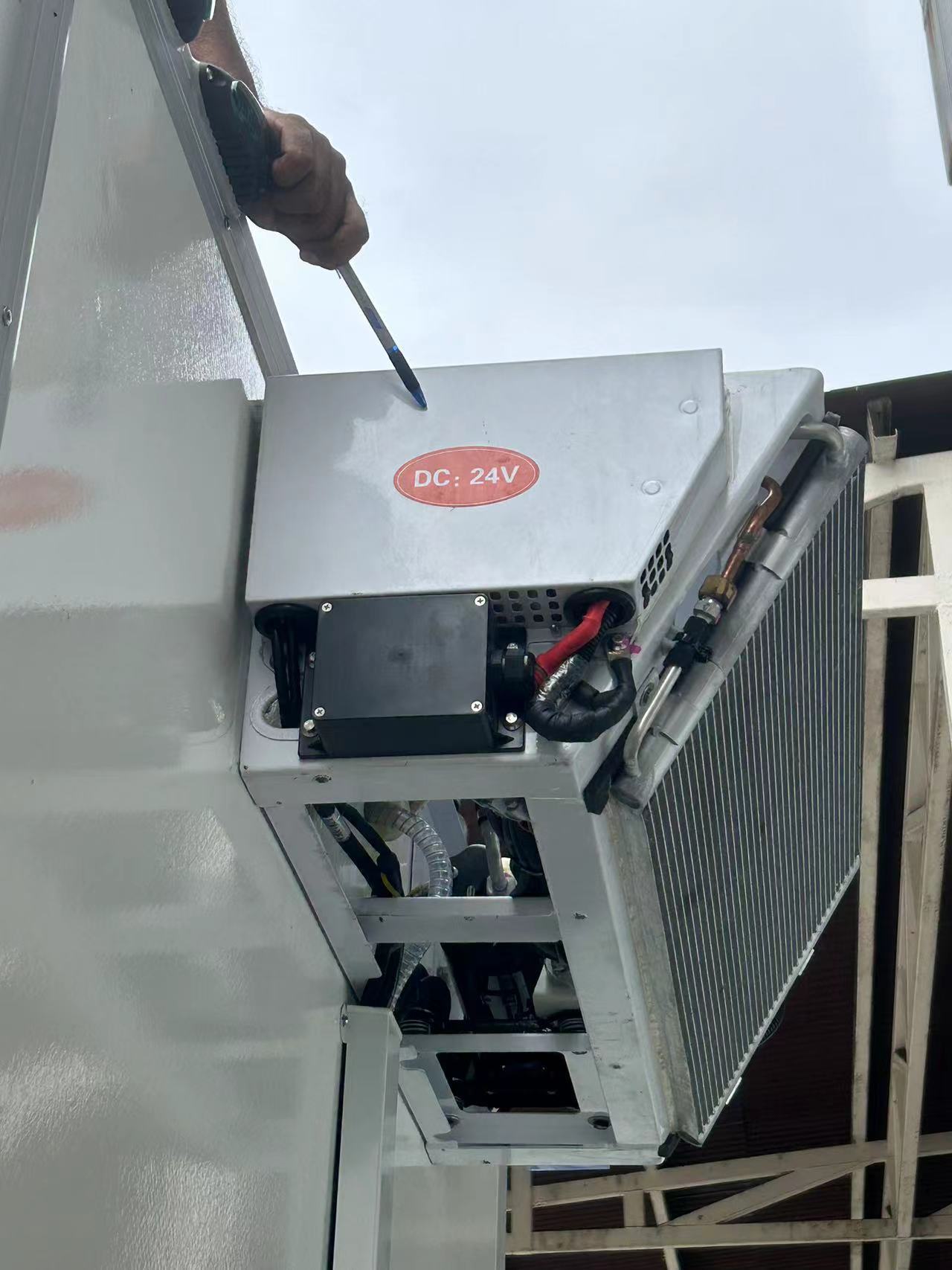

    Driven directly by the vehicle battery, HUABON THERMO N-280D is DC12V/24V powered, with electric rotor compressor inbuilt in the nose-mounted condenser, a perfect cooling solution for small and tight truck of 8-12M3 box sizes.
    HUABON THERMO battery driven units are the preferential options for van body with no space to install the direct mount compressor.

    Standard Features
    ● Full-electric units for tight and small trucks
    ● Highly designed condenser and extra-slim evaporator
    ● Electric inverter compressor, low current, high reliability, and low failure rate
    ● Eco-friendly /// Energy-saving /// Low-noise /// Quick-install
    ● Digital and multi-functional control panel, easy operation
    ● Optional hot gas heating and Standby

    Technical Date

    Model N-280D
    Cooling Capacity 0℃/+38℃ 2410W 8223But
    -18℃/+38℃ 1290W 4401But
    Voltage DC12V DC24V
    Current 60~90A 30~45A
    Temperature Range -18℃~+30℃
    Defrosting  Hot gas defrosting
    Evap. Air Volume 1750m³/h
    Refrigerant & Volume R404a/1.1-1.3kg
    Compressor Brand HIGHLY
    Model DSD145
    Dis. 14.5mL/rev
    Condenser Coils Parallel flow
    Fan Qty. 2Pcs
    Size 1020*480*310mm
    Weight 40Kg
    Evaporator Coils Copper tube and fin
    Fan Qty. 2Pcs
    Size 1010*570*150mm
    Weight 15kg
    Recommended Box Size 8-15m³

    Notes: 1. The recommended box sizes are presented for reference only, the actual applicable sizes are subject to the box insulation performance(K-value≤0.32W/M²℃), ambient temperature, and goods to be delivered, etc.   2. Products specifications and appearance are subject to change without priority notice.

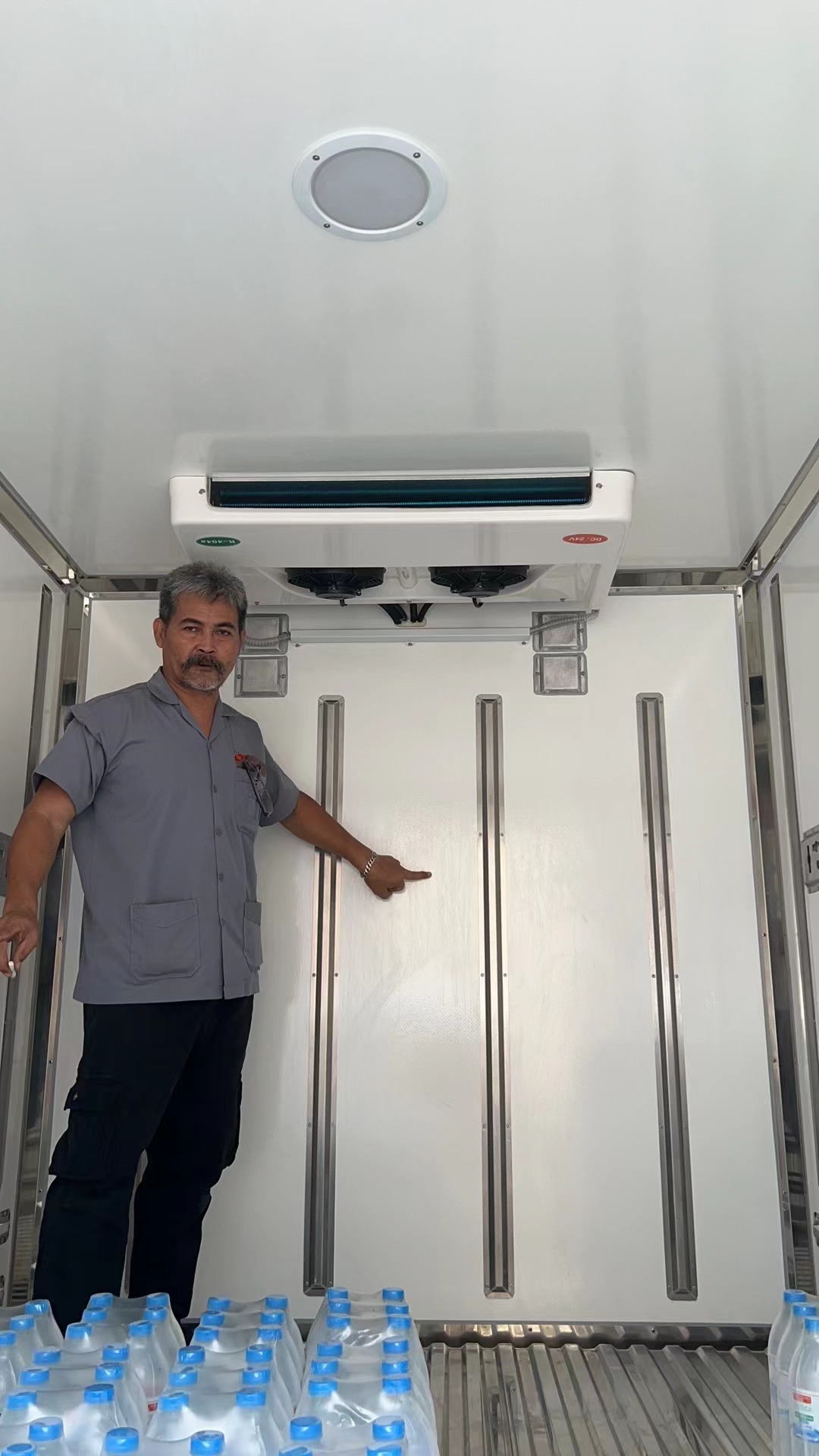

    Application

    N-280D Small Truck Refrigeration Unit for Pickup Trucks

    Parallel flow N-280D Refrigeration Unit for 8~12m³ refrigerated trucks

  • Model N-280D
    Cooling Capacity 0℃/+38℃ 2410W 8223But
    -18℃/+38℃ 1290W 4401But
    Voltage DC12V DC24V
    Current 60~90A 30~45A
    Temperature Range -18℃~+30℃
    Defrosting  Hot gas defrosting
    Evap. Air Volume 1750m³/h
    Refrigerant & Volume R404a/1.1-1.3kg
    Compressor Brand HIGHLY
    Model DSD145
    Dis. 14.5mL/rev
    Condenser Coils Parallel flow
    Fan Qty. 2Pcs
    Size 1020*480*310mm
    Weight 40Kg
    Evaporator Coils Copper tube and fin
    Fan Qty. 2Pcs
    Size 1010*570*150mm
    Weight 15kg
    Recommended Box Size 8-15m³
