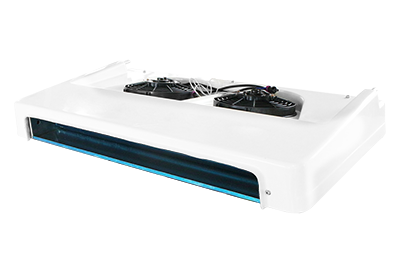

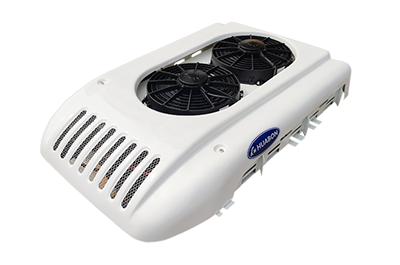

HT-350T Roof-mounted Refrigeration Unit for Van, 10-16m³

Drive Type: Direct Engine Refrigeration Unit for Van
Installation Type: Split Roof Top Mounted
Compressor: 5S14, 138cc/r
Application:10~16m³
Refrigerant: R404a
  • Description
  • Parameters
  • HT-350T Van Refrigeration Unit

    Direct-drive rooftop refrigeration unit for van



    Products Features

    • Roof-mounted condenser; applicable for medium and large-sized vans.

    • Direct-drive by the vehicle engine; fast cooling, high reliability, and low failure rate.

    • Reasonable design with big coils and strong framework, Durable fiberglass shell; Ultra-slim evaporators, saving loading space.

    • Extra-thin condenser, 200mm thick only.

    • Easy installation, simple maintenance, low operation cost.

    • Digital and multi-functional control panel, precise temperature control and simple operation, with e-diagnostics and faults alarming.

    • Optional CPR heating and STANDBY.

    Extra-thin 2 Fan Evaporator Thickness = 150mm /// Extra-thin 2 Fan Condener Thickness = 200mm

    Van Refrigeration Unit with Big Cooling Capacity for Large-sized Van; Adaptable for Hot Ambient Countries and Areas

    Why Choose HT-350T Van Refrigeration Unit?

    • -18C frozen or -5C chill cooling options with BIG COOLING CAPACITY.

    • Eco-friendly R404a refrigerant, cool to -18C ~+25C for different client's demands on temeprature control solutions.

    • Lowest condenser thickness, minimum vehicle height.

    • Strong framework with well-designed metal plate and reinforced fiberglass shell.

    • Enlarged condenser coils size to meet client's demand on big cooling capacity and fast cooling performace.

    • Competitive pricing and cooling reliability for global clients and users

    • Continous cooling on road(powered by vehicle battery) and off engine plug in applications

    • Good-looking appearance



    Technical Data

    Model

    HT-350T

    Cooling Capacity
    (+38℃/100℉)

    Temperature

    Watt

    Btu

    0℃

    3100 10577

    -18℃

    1750 5971

    Temp. Range

    -18℃~+30℃

    Voltage

    DC12V/24V

    Defrosting

    Hot gas defrosting

    Airflow Volume

    1750m³/h

    Refrigerant and Volume

    R404a/1.4kg

    Compressor

    Brand

    GUANGYU

    Model

    5S14

    Displacement

    138cc/r

    Condenser

    Coils

    Parallel flow condenser

    No. of fan

    2 pcs

    Dimensions

    1060*750*200mm

    Weight

    30.5kg

    Evaporator

    Coils

    Inner grooved copper tube & aluminum fan

    No. of fan

    2pcs

    Dimensions

    1010*570*150mm

    Weight

    15kg

    Recommend Box Volume

    10~16m³

  • Model

    HT-350T

    Cooling Capacity
    (+38℃/100℉)

    Temperature

    Watt

    Btu

    0℃

    3100 10577

    -18℃

    1750 5971

    Temp. Range

    -18℃~+30℃

    Voltage

    DC12V/24V

    Defrosting

    Hot gas defrosting

    Airflow Volume

    1750m³/h

    Refrigerant and Volume

    R404a/1.4kg

    Compressor

    Brand

    GUANGYU

    Model

    5S14

    Displacement

    138cc/r

    Condenser

    Coils

    Parallel flow condenser

    No. of fan

    2 pcs

    Dimensions

    1060*750*200mm

    Weight

    30.5kg

    Evaporator

    Coils

    Inner grooved copper tube & aluminum fan

    No. of fan

    2pcs

    Dimensions

    1010*570*150mm

    Weight

    15kg

    Recommend Box Volume

    10~16m³
