HT-750 Truck Freezer Unit, 35-45m³

Drive Type: Direct-drive Truck Freezer Unit
Installation Type: Split Nose-mounted
Compressor: TK21, 215cc/r
Application: 35~45m³
Refrigerant: R404a
  • Description
  • Parameters
  • Introduction

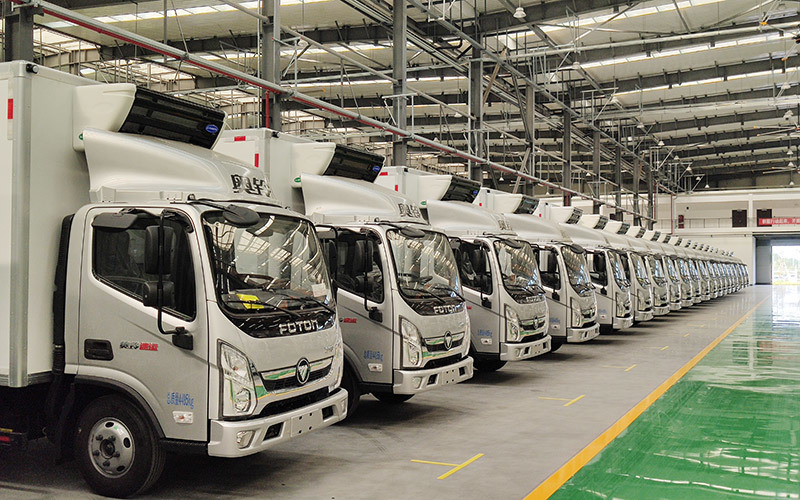

    1. Driven by vehicle engine, HUABON THERMO HT-750 Truck Freezer Unit is designed for 35~45m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

    2. Our product will be customers' preferential choice who wants to put together the durability, reliability with moderate pricing.

    3. Low operational cost and service cost.



    Features

    ► R404A Eco-friendly refrigerant

    ► Parallel flow condenser, light and compact, with good heat exchanging.

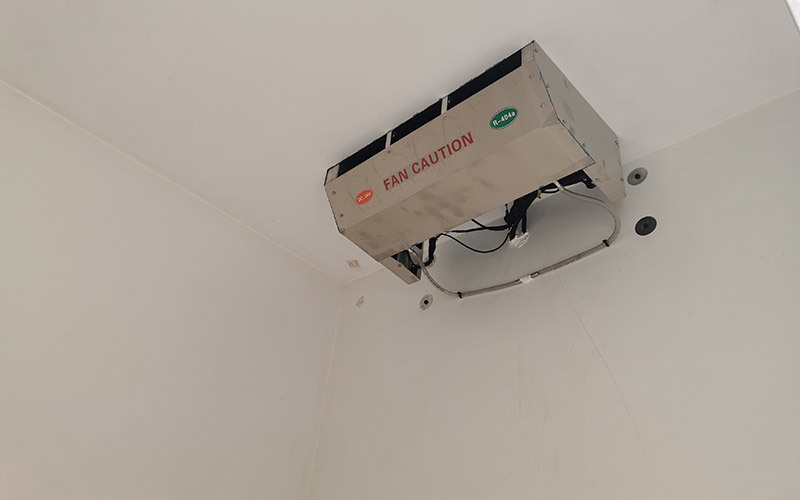

    ► Strong evaporator, with large airflow and good protection to the evaporator coils.

    ► Reputable Thermo King TK21/QP21 compressor for R404a systems specially.

    ► In-cab digital & multifunctional temperature control solutions.

    ► Quick and easy installation.

    ► HP and LP switch safety protection.

    ► Large cooling capacity, reliable performance.



    Technical Data

    Model

    HT-750

    Cooling Capacity
    (+38℃/100℉)

    Temperature

    Watt

    Btu

    0℃

    7450

    25419

    -18℃

    3650

    12454

    Temp. range

    -18℃~+30℃

    Voltage

    DC12V/24V

    Defrosting

    Hot gas defrost

    Evaporator Airflow Volume

    3000m³/h

    Refrigerant and volume

    R404a/2.8kg

    Compressor

    Brand

    VALEO

    Model

    TM21

    Displacement

    215cc/r

    Condenser

    Coils

    Parallel flow condenser

    No. of fan

    2Pcs

    Dimensions

    1400*530*510mm

    Weight

    50kg

    Evaporator

    Coils

    Inner grooved copper tube & aluminum fin

    No. of fan

    3Pcs

    Dimensions

    1240*650*355mm

    Weight

    43kg

    Recommend Box Volume

    35~45m³



    Application

    HT-750 Truck Freezer Unit

    HT-750 Truck Freezer Unit

  • Model

    HT-750

    Cooling Capacity
    (+38℃/100℉)

    Temperature

    Watt

    Btu

    0℃

    7450

    25419

    -18℃

    3650

    12454

    Temp. range

    -18℃~+30℃

    Voltage

    DC12V/24V

    Defrosting

    Hot gas defrost

    Evaporator Airflow Volume

    3000m³/h

    Refrigerant and volume

    R404a/2.8kg

    Compressor

    Brand

    VALEO

    Model

    TM21

    Displacement

    215cc/r

    Condenser

    Coils

    Parallel flow condenser

    No. of fan

    2Pcs

    Dimensions

    1400*530*510mm

    Weight

    50kg

    Evaporator

    Coils

    Inner grooved copper tube & aluminum fin

    No. of fan

    3Pcs

    Dimensions

    1240*650*355mm

    Weight

    43kg

    Recommend Box Volume

    35~45m³
